Liebherr Restores a 60-Year-Old Wheel Loader Prototype: The LSL 1500

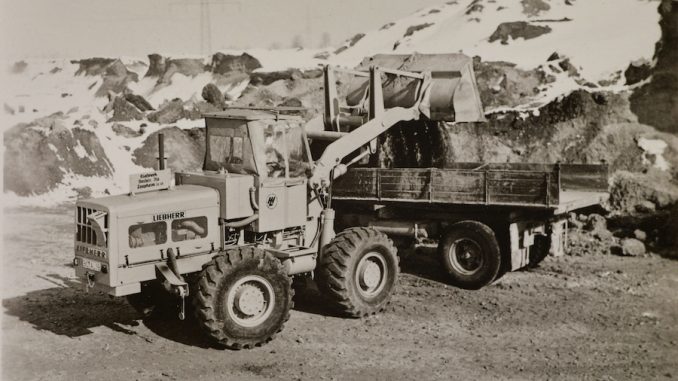

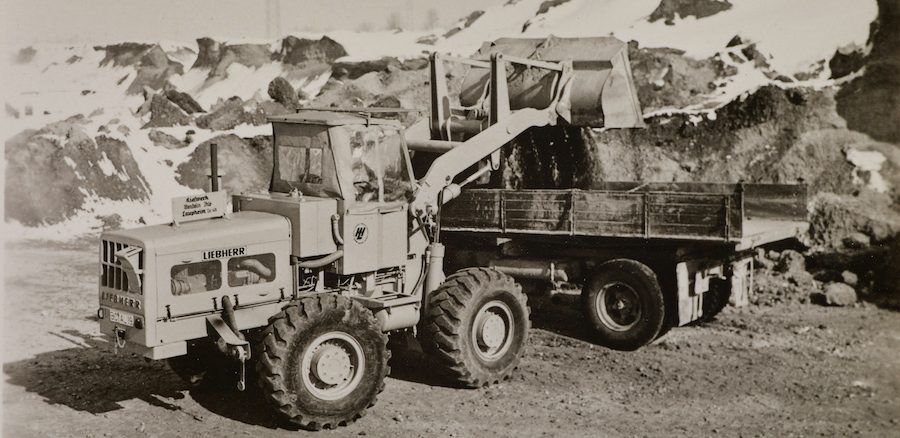

Original photograph: The LSL 1500 in a gravel plant in the early 1960s.
  • LSL 1500 is a Liebherr wheel loader prototype from the early 1960s
  • The shovel loader was completely restored in the Liebherr Bischofshofen plant
  • The restored model is the oldest preserved Liebherr wheel loader in existence
  • The machine was in use for over 40 years until the early 2000s

Almost 60 years after its début, Liebherr has restored one of the first wheel loader prototypes from the corporate group’s early years: the LSL 1500. This specimen is the oldest preserved Liebherr wheel loader in existence. Liebherr has invested about 650 working hours in the restoration of the vintage loader which is now used as an exhibition piece in the Liebherr Bischofshofen factory.

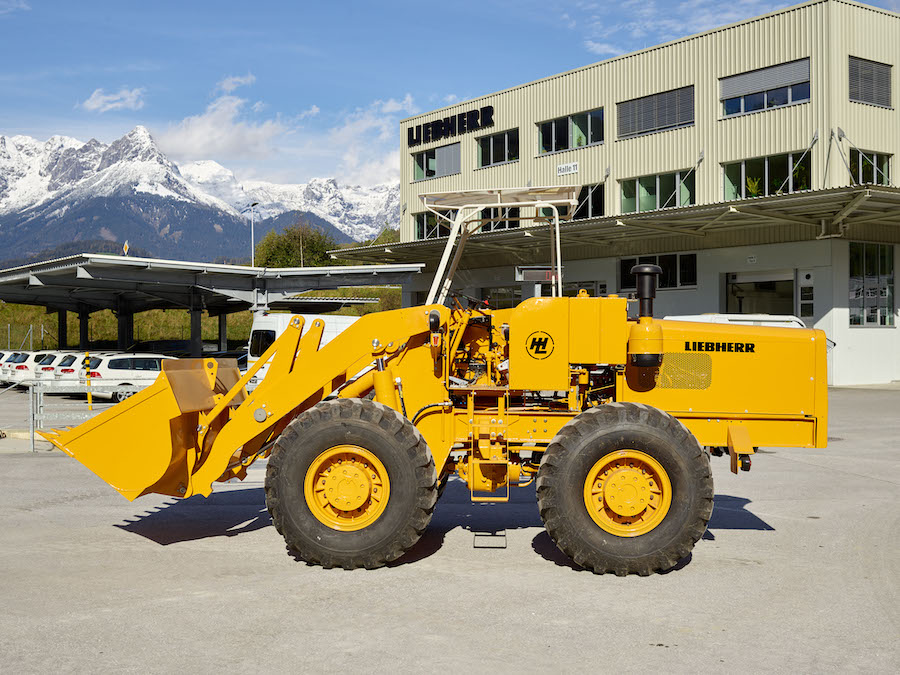

Lovingly and fully restored: The LSL 1500 shovel loader is the oldest preserved Liebherr wheel loader in existence.

“When developing wheel loaders, we deal with the latest technologies and trends on a daily basis. However, we also respect our roots. And this wheel loader here shows that Liebherr was getting innovative machine concepts off the ground even six decades ago,” explains Martin Gschwend, who is managing director of the Liebherr Bischofshofen plant and responsible for the worldwide distribution of Liebherr wheel loaders.

At the Bischofshofen facility, he is inspecting a particular rarity: a Liebherr LSL 1500 wheel loader from the early 1960s. It is the only remaining example of a pilot series of only five machines and is the oldest preserved Liebherr wheel loader in existence. The wheel loader specialists in Bischofshofen have lovingly and fully restored this machine over recent months.

From scrap metal to an exhibition piece

The wheel loader veteran has had a very full life. After a few years at a gravel factory in the Biberach area, the machine arrived at the Fried-Sped corporate group in Ummendorf circa 1980. The LSL 1500 served the logistics specialist reliably for around 20 years. At the beginning of the 2000s, with the shovel loader already around 40 years old, Liebherr took the prototype back and preserved the now decommissioned wheel loader.

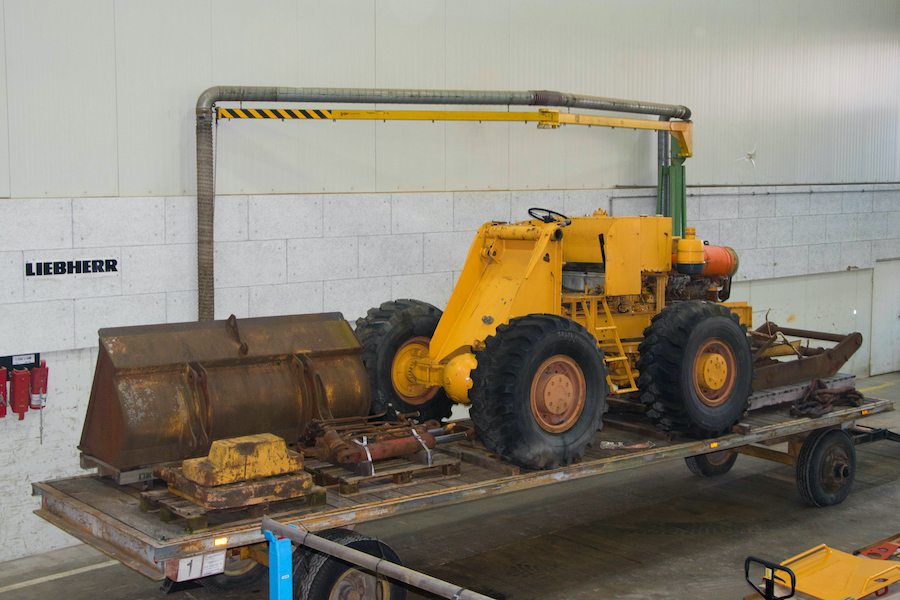

However, this storage location was not to be the final resting place for the historic wheel loader. In 2019, Liebherr-Werk Bischofshofen GmbH decided to fully restore this last remaining LSL 1500. The ravages of time, particularly in the form of rust and frost damage, had taken their toll on the machine.

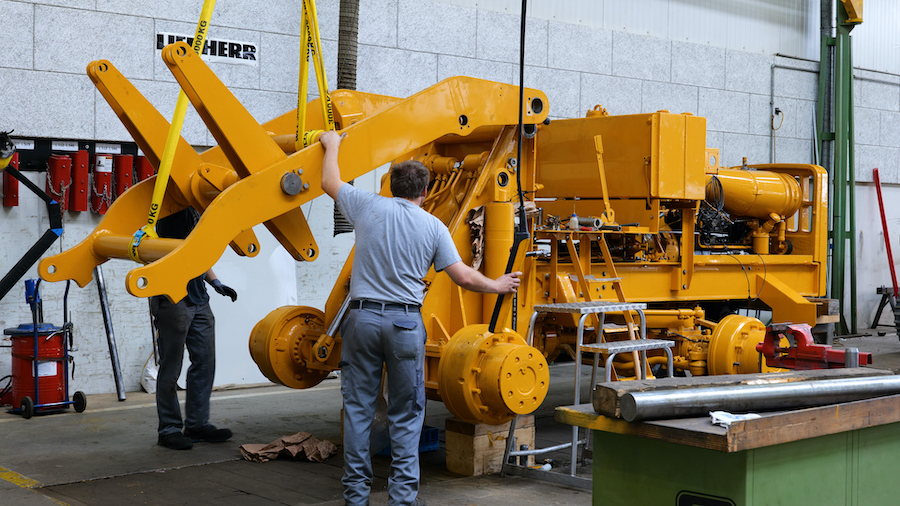

The project began in the spring of 2020 at the Liebherr Bischofshofen plant. The wheel loader experts refurbished each individual part of the LSL 1500 down to the very last screw. For the team, the renovation meant much more than mere nostalgia: “Several apprentices worked on the restoration. For them, this was a rare opportunity to observe and understand the technology of earlier times,” explains Andreas Scharler, who ran the repair centre for many years.

In many places, technical skill and improvisational talent were required. “When you start the diesel engine, the operating voltage suddenly switches from 12 to 24 volts. We first had to analyse this process correctly in order to be able to start the wheel loader successfully. It was a splendid moment when we heard the powerful six-cylinder diesel engine running for the first time,” says Scharler, who, with his team, invested about 650 working hours in this vintage wheel loader.

A piece of wheel loader history

In the 1950s, Liebherr was already experimenting with wheel loaders, a type of machine still in its infancy and underdeveloped at the time. Liebherr’s first two prototypes, the “Elephant” and “Mammoth” models, still had to cope with increased tyre wear and modest traction.

In the early 1960s, Liebherr then managed to create a reliable wheel loader prototype with the LSL 1500, weighing around ten tonnes and with 108 hp. Leibherr produced a pilot series of five units. The LSL 1500 had a rigid frame and hydraulically supported rear wheel steering which was luxurious for the time. The load transmission was achieved by a torque converter and a four-wheel drive, which could optionally be switched off.

The new kinematics provided a dumping height of around three metres and allowed for the loading of construction site vehicles with larger side heights. For poor weather, an all-weather cover with sewn-in transparent windows and heating was available for the operator’s platform, which was still open at that time. With pride, Liebherr described its LSL 1500 in a data sheet as a “new design based on many years of experience in the construction of earth-moving machines”.

You can find further information on the restoration of the Liebherr shovel loader LSL 1500 at www.liebherr.com/lsl-1500.
